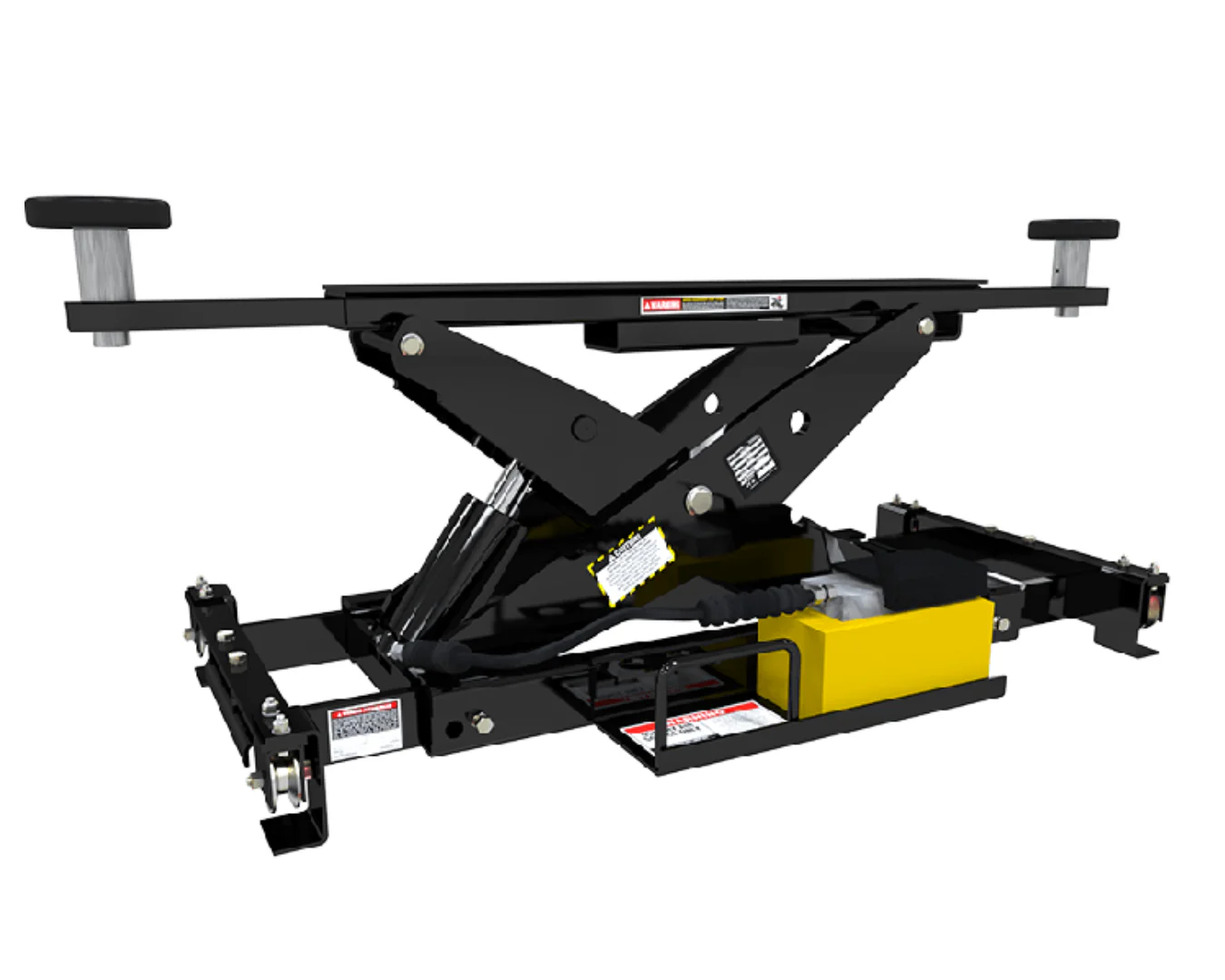

BendPak RJ7W Rolling Bridge Jack

BendPak RJ7W Rolling Bridge Jack

The BendPak RJ7W Rolling Bridge Jack is designed for use with four-post lifts, providing a simple and efficient solution for lifting vehicles to perform tire swaps or other under-vehicle maintenance. This 7,000-lb capacity jack comes with easy-roll wheels and rubber contact pads for easy positioning and secure lifting of vehicles. It’s perfect for medium-duty vehicles and sports cars, and its adjustable stackable adapters ensure compatibility with a wide range of vehicle types. A high-pressure hydraulic system and foot pedal activation offer smooth, reliable operation.

Features:

• Lifting Capacity: 7,000 lbs

• Easy-Roll Wheels: Standard for effortless positioning along runway channels

• Rubber Contact Pads: Included for secure engagement with vehicle lift points

• Stackable Adapters: Adjustable to fit various vehicle suspension heights

• High-Pressure Hydraulic Power Unit: Provides powerful and smooth operation

• Three Lock Levels: Automatic locking as the jack rises with easy release as it descends

• Foot Pedal Activation: Simple, user-friendly control

• Optional Air-Line Kit: Available for additional convenience

Specifications:

• Lifting Capacity: 7,000 lbs (3,175 kg)

• Suitable Lift Model(s): HDS-14 Series, HDSO14P, HD-14 Series

• Min. Drive-Over Height:

  • Pad Only: 4" (102 mm)

  • Pad + 2.75" Adapter: 6.75" (171 mm)

  • Pad + 5.5" Adapter: 9.5" (241 mm)

• Max. Lifting Height:

  • Pad Only: 14.75" (375 mm)

  • Pad + 2.75" Adapter: 17.5" (445 mm)

  • Pad + 5.5" Adapter: 20.25" (514 mm)

• Reach:

  • Support Base Width: 36.25" (921 mm) - 46.5" (1,181 mm)

  • Max. Arm Reach: 56" (1,422 mm)

  • Min. Arm Reach: 42" (1,067 mm)

• Time to Full Rise: 55 seconds

• Pump Type: Air/Hydraulic

• Air Pressure: 125 PSI (10-25 CFM)

• Max. Operating Hydraulic Pressure: 4,550 PSI

• Power Requirement: None

• Shipping Weight: 440 lbs (200 kg)

• Shipping Dimensions: 42" x 25" x 15" (1,066 mm x 635 mm x 381 mm)

A $395 surcharge from the freight carrier will be applied if no forklift or loading dock is available at the delivery location.
