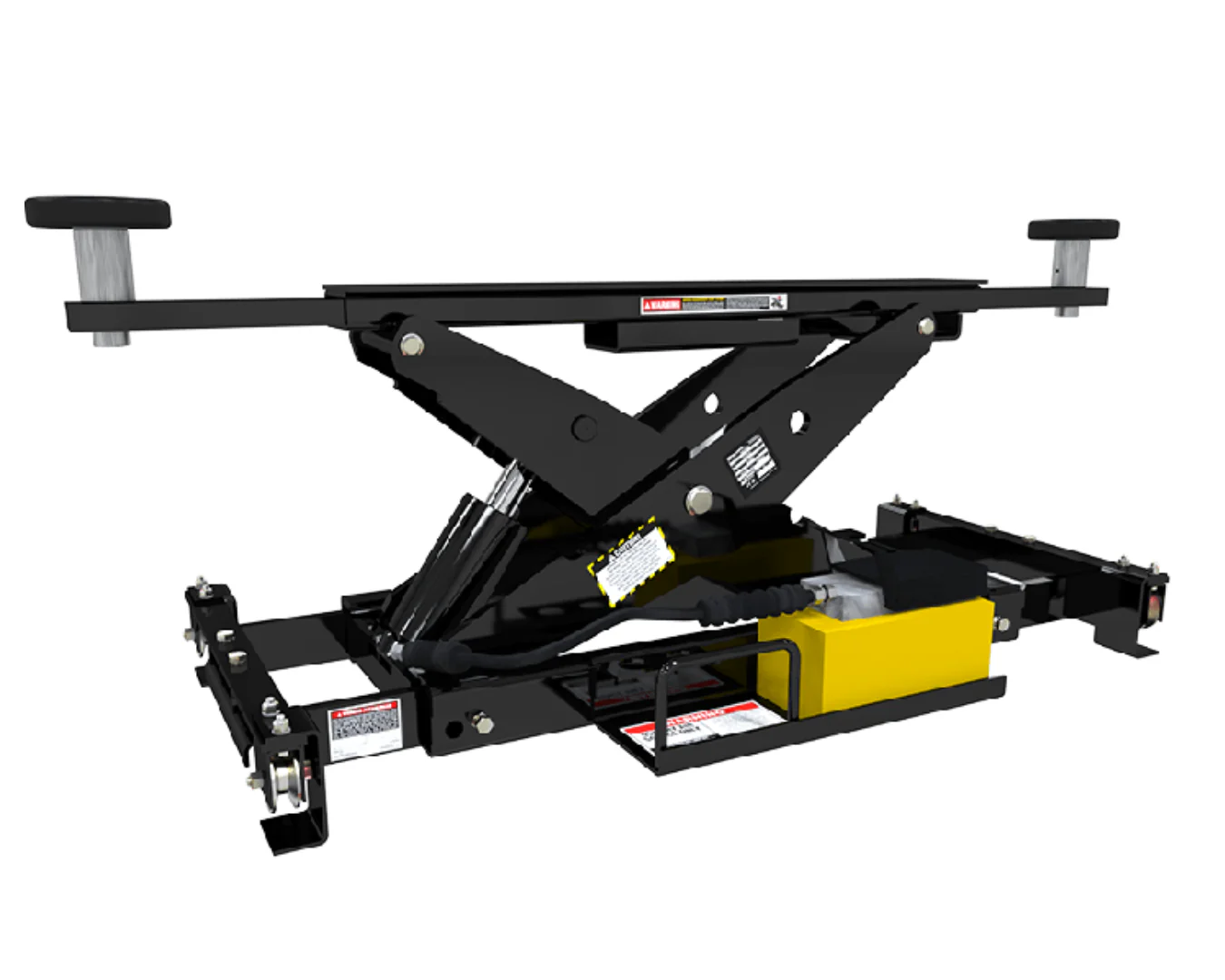

BendPak RJ6W Rolling Bridge Jack

BendPak RJ6W Rolling Bridge Jack

The RJ6W rolling bridge jack is engineered for safety and durability, capable of lifting up to 6,000 lbs. with ease. It provides a reliable and efficient solution for servicing vehicles, ensuring peace of mind when working with heavy loads.

Features:

• Lifting Capacity: 6,000 lbs.

• Easy-Roll Wheels: Standard wheels for smooth and effortless movement along runway channels on 12,000-lb lifting capacity or greater four-post lift models.

• Rubber Contact Pads: Durable, adjustable pads engage directly at manufacturer-recommended lift points. Optional frame cradle pads for wider frames.

• Stackable Adapters: Extend the reach of the jack arms for longer undercarriage access. Accommodates virtually every vehicle type.

• High-Pressure Hydraulic Power Unit: Commercial-grade air-hydraulic pump requires 125 psi and 10-20 CFM. Quick lift for immediate use.

• Three Lock Levels: Provides multiple height options for precise vehicle positioning. Automatically engages and releases for smooth operation.

• Optional Air-Line Kit: For additional functionality.

Specifications:

• Lifting Capacity: 6,000 lbs. (2,721 kg)

• Suitable Lift Model(s): XR-12000 Series

• Min. Drive-Over Height:

  • Pad Only: 1.25" (32 mm)

  • Pad + 2.75" Adapter: 4" (102 mm)

  • Pad + 5.5" Adapter: 6.75" (171 mm)

• Max. Lifting Height:

  • Pad Only: 12" (305 mm)

  • Pad + 2.75" Adapter: 14.75" (375 mm)

  • Pad + 5.5" Adapter: 17.5" (445 mm)

• Reach:

  • Support Base Width: 36.25" (921 mm) - 47.25" (1,200 mm)

  • Max. Arm Reach: 56" (1,422 mm)

  • Min. Arm Reach: 42" (1,067 mm)

• Time to Full Rise: 55 seconds

• Pump: Air/Hydraulic

• Air Pressure: 125 PSI (10-25 CFM)

• Max. Operating Hydraulic Pressure: 3,370 PSI

• Power Requirement: None

• Shipping Weight: 436 lbs. (193 kg)

• Shipping Dimensions: 42" x 24" x 14" (1,066 mm x 609 mm x 355 mm)
